Ultrasonic flow meters are devices that use ultrasonic waves to measure the velocity of a fluid to calculate volume flow. These meters are gaining popularity in various industries due to their unique advantages. This article will explore why ultrasonic flow meters are becoming an essential tool in modern fluid flow measurement.
What are Ultrasonic Flow Meters?
Basic Principle
Ultrasonic flow meters operate using sound waves that pass through the fluid in the pipe. By
measuring the time it takes for the ultrasonic signal to travel between transducers, the flow meter can calculate the velocity of the liquid, which is then used to compute the flow rate.
Types of Ultrasonic Flow Meters
There are mainly two types of ultrasonic flow meters:
1. Transit-Time Flow Meters: These measure the time it takes for an ultrasonic wave to travel a set distance with and against the flow direction.
2. Doppler Flow Meters: These utilize the frequency shift of an ultrasonic wave reflected by suspended particles or bubbles within the flow.
Advantages of Using Ultrasonic Flow Meters:

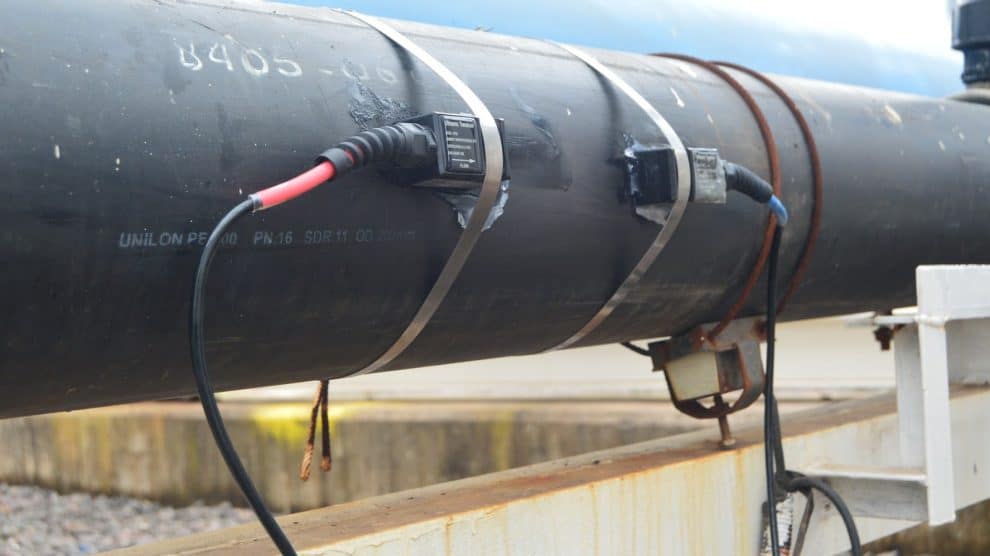

Non-Invasive Measurement
One of the critical benefits of ultrasonic flow meters is that they don’t require any physical
intrusion into the fluid flow, making them non-invasive. This leads to:
– Less maintenance: No moving parts that can wear out.
– Ease of installation: No need to cut pipes or shut down the process.
High Accuracy
Ultrasonic flow meters provide highly accurate measurements, especially transit-time meters, making them suitable for various applications, including billing.
Versatility
These flow meters can handle various flow rates and fluid types, including liquids and gases, making them highly versatile.
No Pressure Drop
Since there are no obstructions in the flow path, there is no pressure drop, making the process more efficient.
Cost-Effective
With reduced maintenance and installation costs, ultrasonic flow meters are often a cost-effective solution in the long term.
Applications of Ultrasonic Flow Meters:
Water and Wastewater Treatment
Used for monitoring and controlling the flow of water, these meters are integral in water
management systems.
Oil and Gas Industry
In the oil and gas industry, accurate flow measurements are critical, and ultrasonic flow meters offer a robust solution.
Pharmaceutical and Food Industry
With hygienic and non-intrusive measurements, these meters are suited for the pharmaceutical and food industry.
Conclusion
Ultrasonic flow meters offer various advantages, making them a preferred choice in multiple industries. Their non-invasive nature, high accuracy, versatility, and cost-effectiveness are vital factors that contribute to their growing popularity. Whether water treatment, oil and gas, or food processing, ultrasonic flow meters provide an efficient and precise solution for fluid flow measurement. With ongoing technological advancements, their application and utility are only expected to grow, solidifying their place as an essential tool in modern industry.
